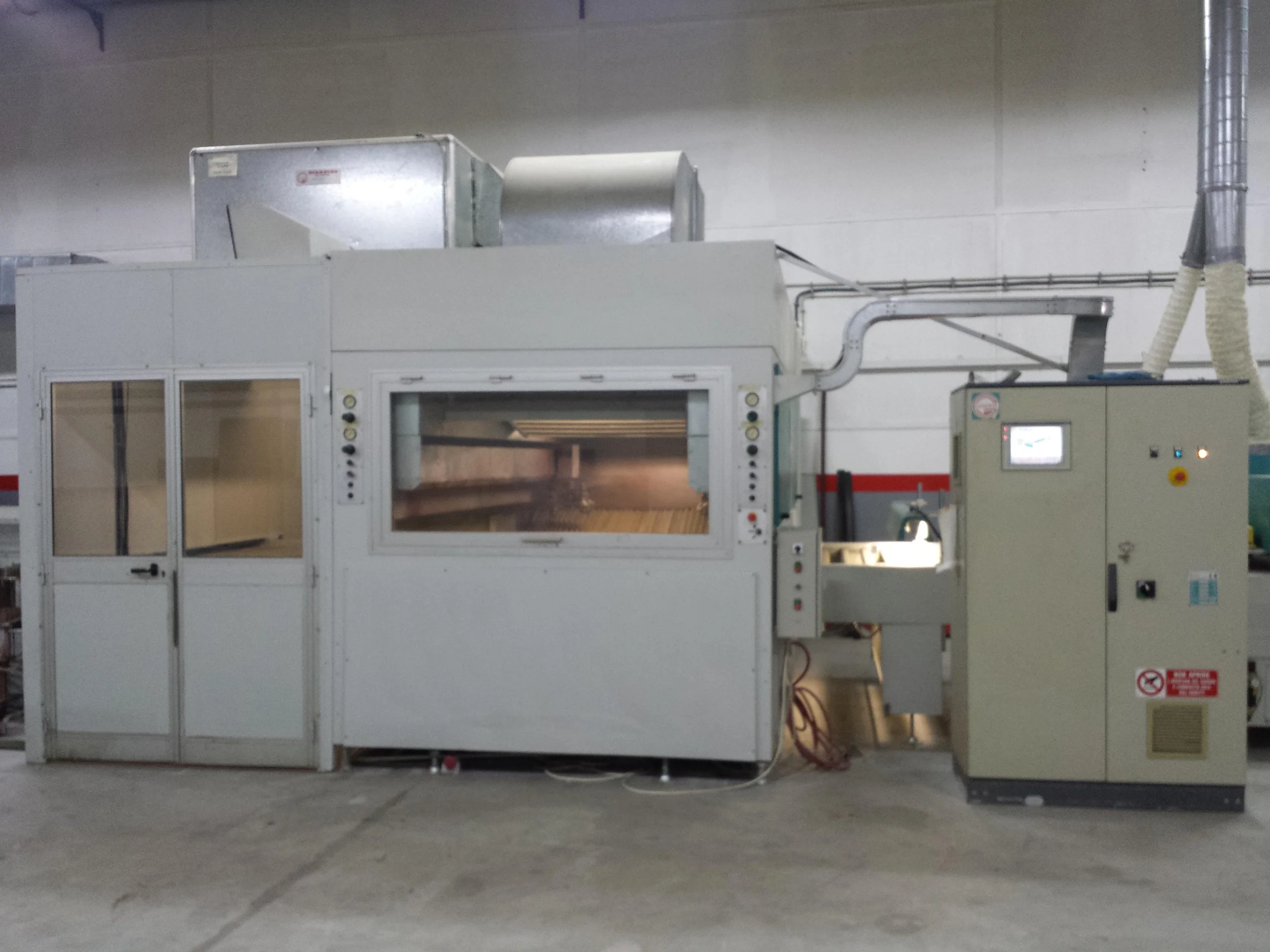

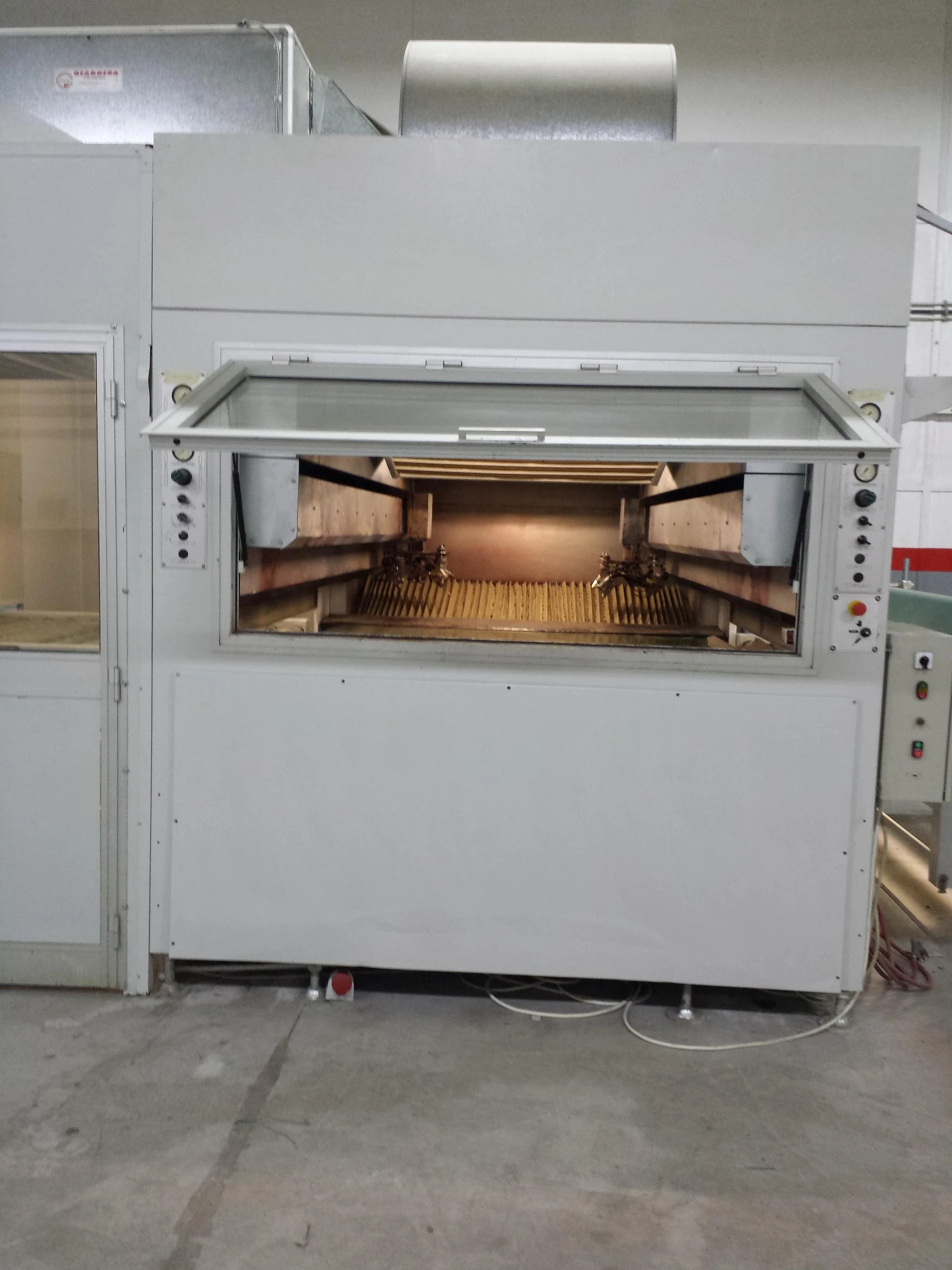

Giradina Spray Line
Giradina Spray Line
Technical Specifications
- Year of manufacture
- 2006
- Control
- Giradina
- Workpiece height (min–max) mm
- 10–60
- Maximum working width (mm)
- 1300
- Spray line
- Yes
- Total number of spray heads
- 8
- Passage width, mm
- 1400
- Workpiece Cleaning
- Yes
- Workpiece Recognition
- Yes
- Transport System
- Band
- Spraying stations
- 2
- Quick-Change System for Pistol Holsters
- Yes
- Paint Circles
- 2
- Airless Coating System
- Yes
- Airmix Coating System
- Yes
- Paint Recovery
- Yes
- About Rollers
- Yes
- Water Purification
- no
- Dry Vacuuming
- Yes
- Hochtrockner Paletten Stk.
- 26
- Palettenlänge mm
- 5500
- Feed rate m/min
- 3–5
Bürkle Painting Line
Top Machine- Rolling MillYes
- Workpiece width (min–max) mm100–1300
- Workpiece length min–max mm150–3000
- Workpiece height (min–max) mm6–80
- liff- 1 x cleaning brush - 1 x Bürkle paint application roller - 1 x UV dryer - 1 x Bürkle application roller - 1 x Excimer - 1 x UV dryer (unstacking)
Giardina Paint Shop
- Rolling MillYes
- Workpiece width (min–max) mm1300
- Workpiece length min–max mm2500
- Workpiece height (min–max) mm10–80
- Brush Grinder1
Venjakob Paint Shop
- ManufacturerVenjakob
- ControlCNC-6300
- Spray lineYes
- Workpiece width (min–max) mm10–1300
- Workpiece length min–max mm150
Cefla Igiotto system
- ManufacturerCefla
- ControlCefla
- Spray lineYes
- Workpiece width (min–max) mm1500
- Workpiece length (min–max) mm300–2800
Burkle Paint Roller, Street
- ManufacturerBürkle
- Rolling MillYes
- Workpiece width (min–max) mm1300
- Grinding machine, pcs.3 x Heesemann
- Grinding machine, pcs.3 x Heesemann
Walter Spray + Cefla UV 4 lamps
- Spray lineYes
- Workpiece width (min–max) mm1300
- Injection Molding MachineWalther
- 4 UV lamps, each1
Makor TF Coating Line
- ManufacturerMakor
Makor Decorating Machine for Molding
- ManufacturerMakor
- ControlMakor
Giardina Dualtech 401
Top Machine- ManufacturerGiardina
- ControlProgram
- Workpiece width (min–max) mm1300
- Workpiece length min–max mm1500
- Spray lineYes
