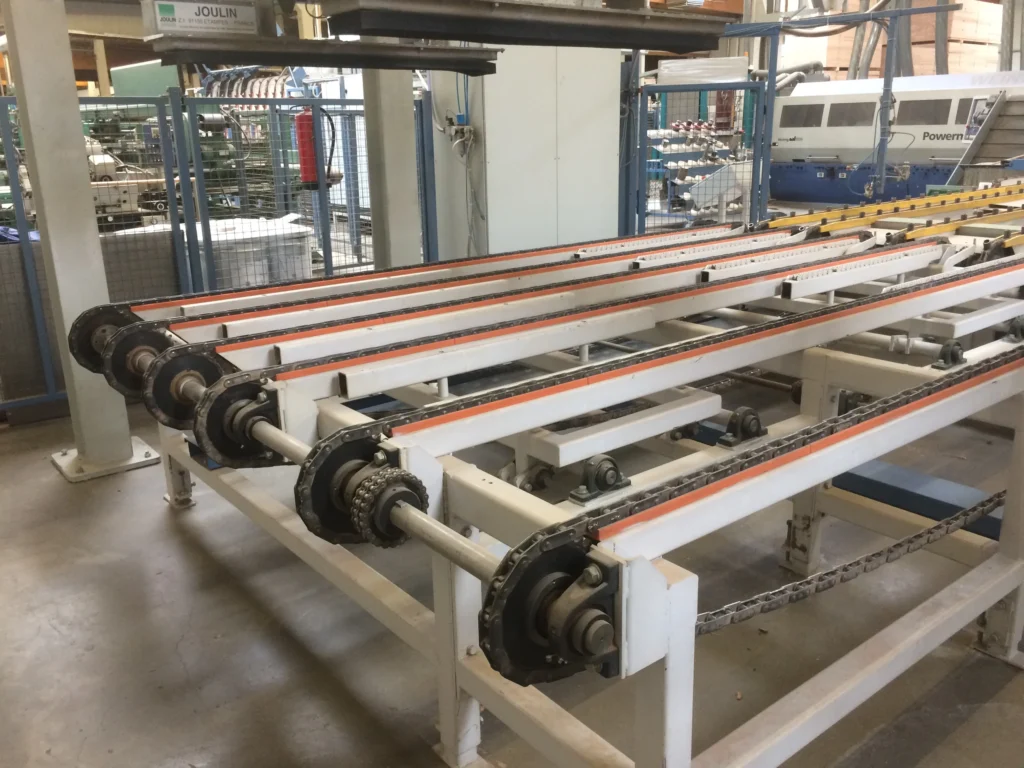

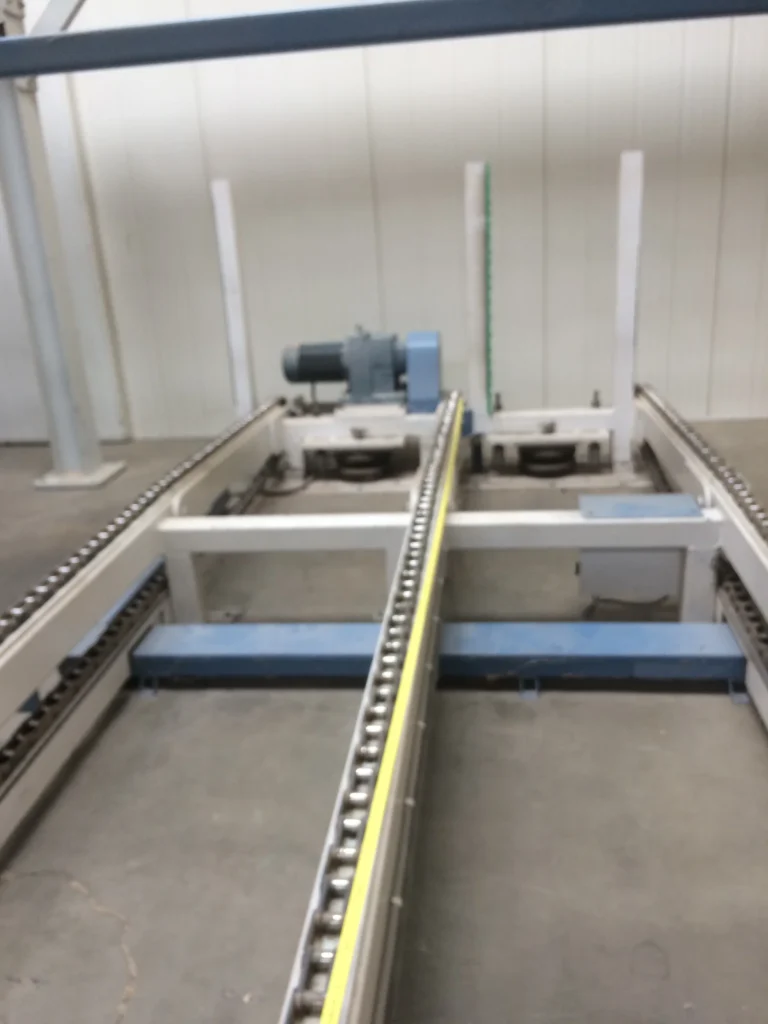

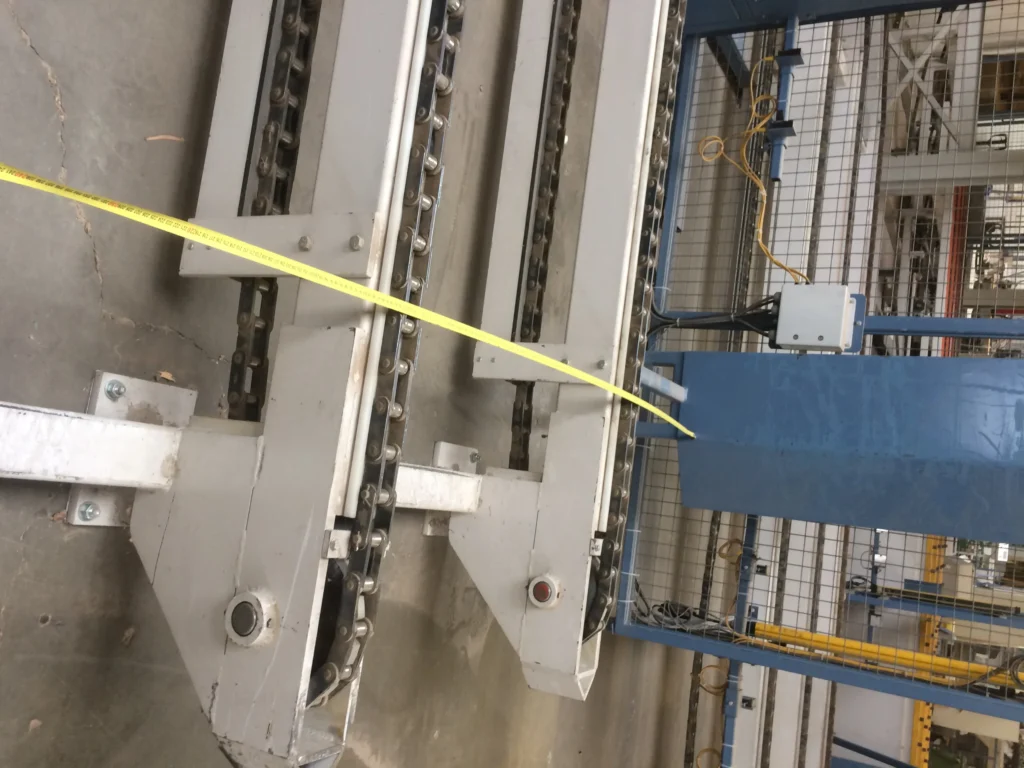

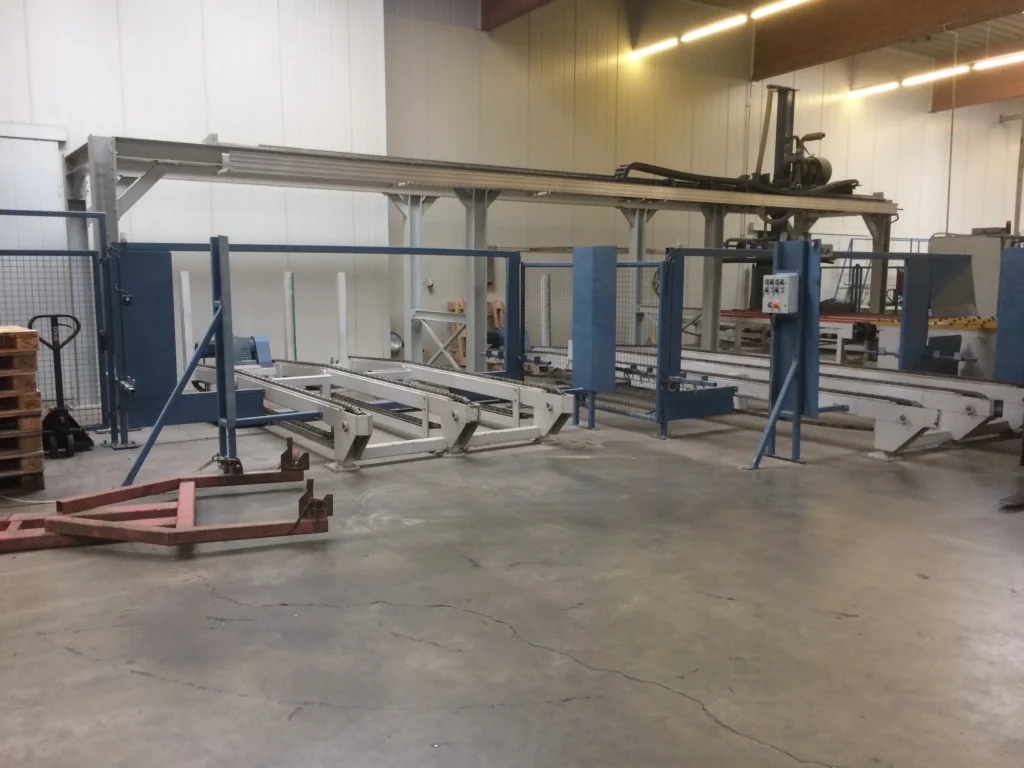

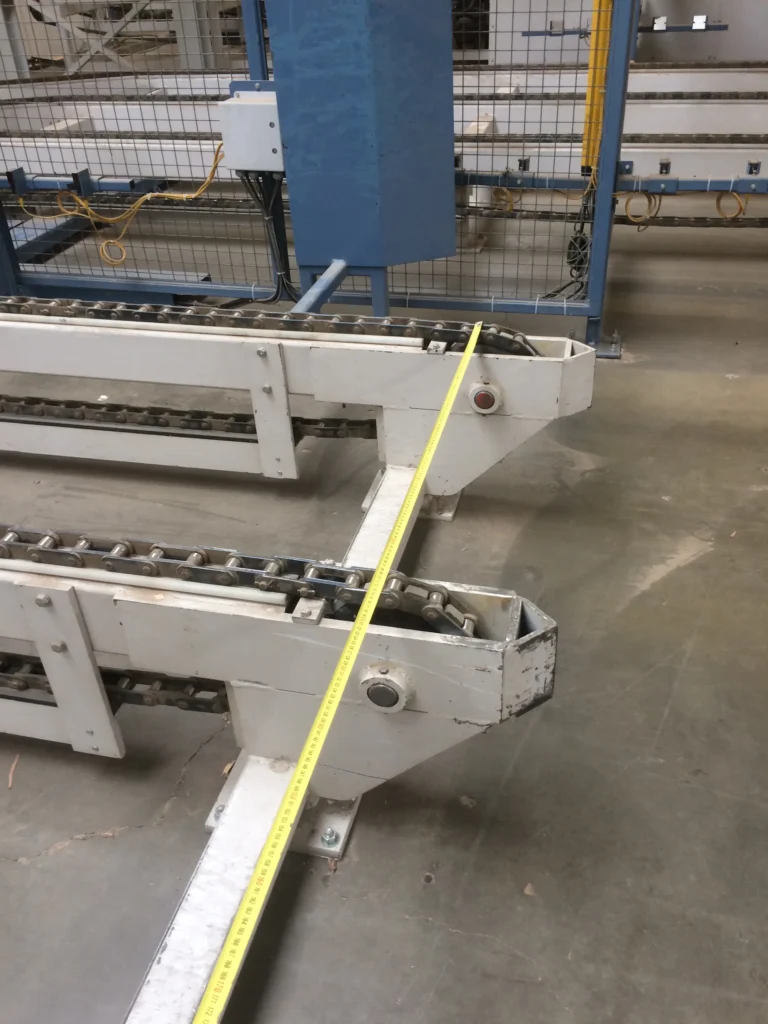

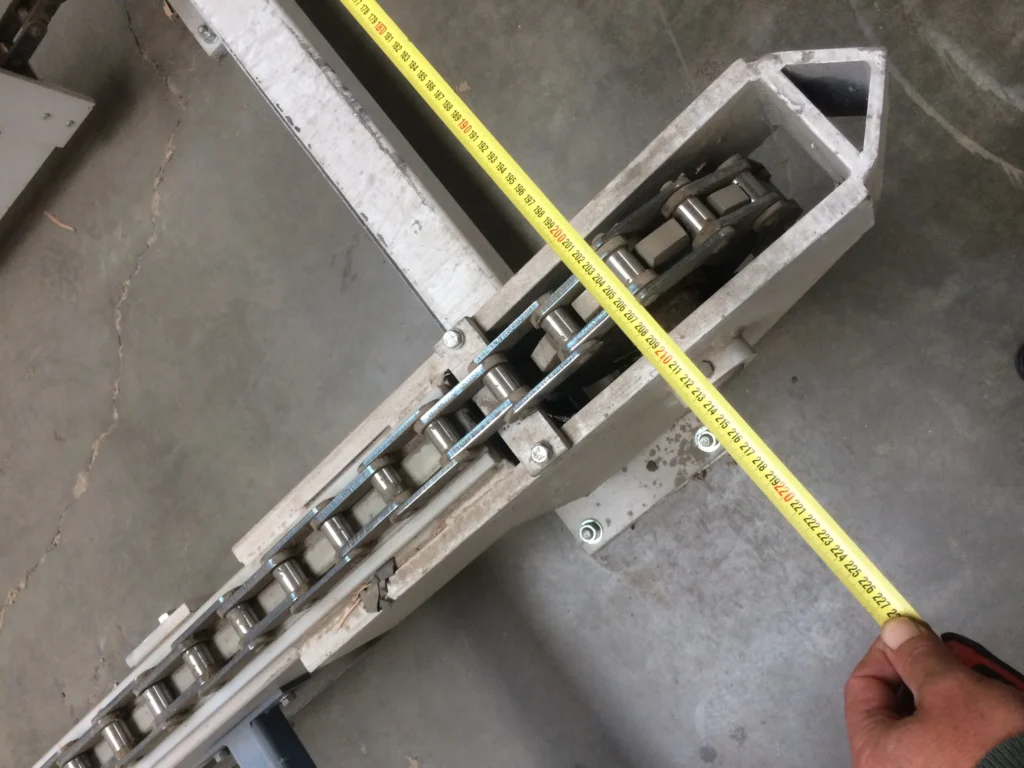

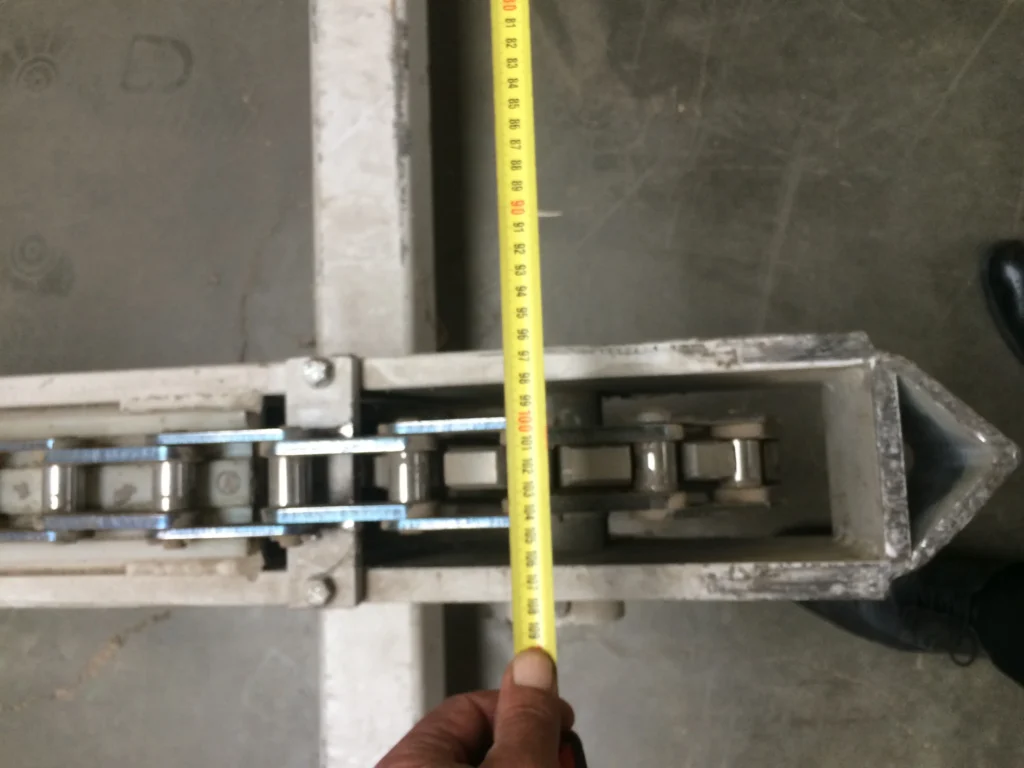

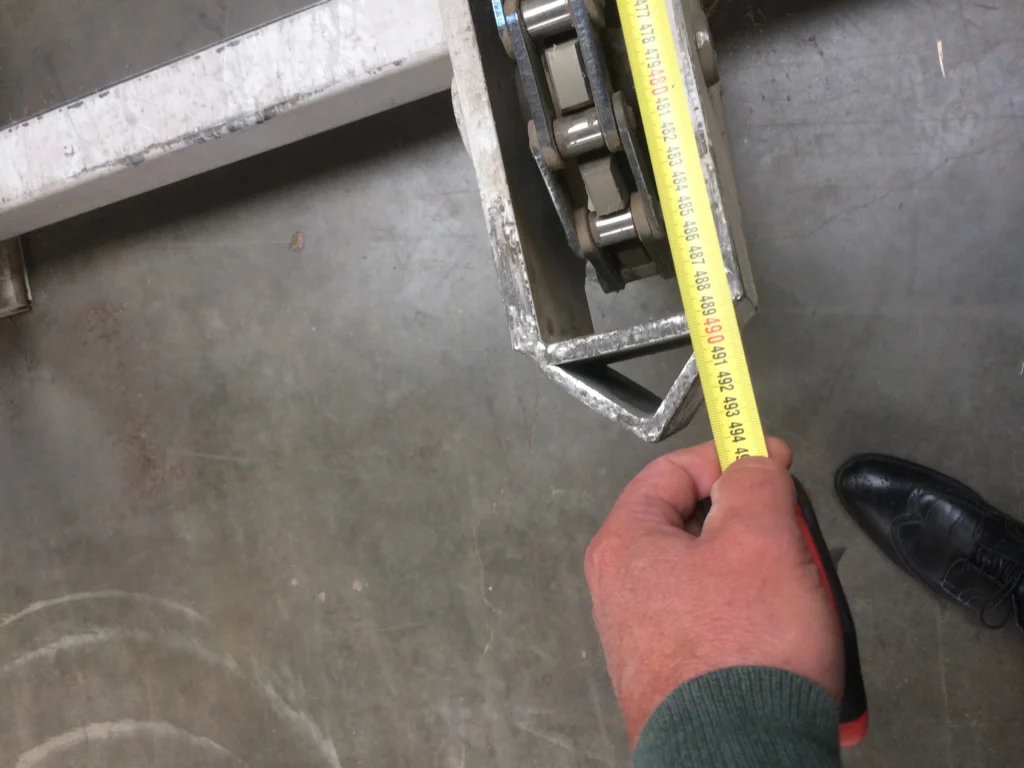

Mechanika Floorboard Unloading System
Mechanika Floorboard Unloading System
Technical Specifications
- Control
- Omron
- Workpiece width (min–max) mm
- 40-1300
- Workpiece length (min–max) mm
- 150–3,000
- Workpiece height (min–max) mm
- 10–60
- Vacuum Loading
- Yes
- Cross-Feeding
- Yes
- Single-row stacked image
- mehrreihig
- Number of stacks
- 2 Stapleplätze
- Cycle capacity approx.
- 5
- Saugerreihen Stück
- Unigripper
- Protective Plate Drainage
- no
- Infinite-adjustable feed
- Yes
- Feeding via a cross conveyor
- Yes
- Machine Ready for Demonstration
- Yes
Platzbedarf ca.10 m X 7 m/Auflegestationen 5000 mm und 7500 mm
Bargstedt Cross-Stacking System
- ManufacturerBargstedt
- ControlBargstedt
- Workpiece width (min–max) mm800
- Workpiece length min–max mm280–2500
- Workpiece height (min–max) mm12–40
Joulin Vacuum – Destacking System
- Workpiece width (min–max) mm150–250
- Workpiece length min–max mm2000–6000
- Workpiece height (min–max) mm23–48
- Vacuum LoadingYes
- Stack width: max. 1200 mm
Bargstedt TSH 500/Q/30/12S Unloading System
Top Machine- ManufacturerBargstedt
- ControlHomag
- Workpiece width (min–max) mm1200
- Workpiece length min–max mm280–3000
- Workpiece height (min–max) mm12–60
Howial MGZ 238 Slide-In Magazine
- Controlmanual
- Workpiece width (min–max) mm30–120
- Workpiece length min–max mm400–3000
- Workpiece height (min–max) mm12–60
- Longitudinal FeedingYes
Loading station with angled transfer
- Controlautomatic
- Workpiece width (min–max) mm30–200
- Workpiece length min–max mm100–2600
- Workpiece height min–max mm10–50
- Cross-FeedingYes
MOD.CR6500 Horizontal Strip Loading Machine
- ManufacturerGiardina
- ControlYes
- Workpiece width (min–max) mm0–200
- Workpiece length min–max mm6500
- Cross-FeedingYes
Systematic Stacking Machine
- ManufacturerSistematic
- ControlSiemen
- Workpiece width (min–max) mm1200
- Workpiece length min–max mm3000
- Workpiece height (min–max) mm10–60
Kraft Feeding System
- ManufacturerKraft
- ControlBeckhoff
- Workpiece width (min–max) mm1200
- Workpiece length min–max mm500–2400
- Workpiece height (min–max) mm10–60
Meinert Feeding System
- ControlContactor Control
- Workpiece width (min–max) mm150–1200
- Workpiece length min–max mm500–2500
- Workpiece height (min–max) mm10–60
- Vacuum LoadingYes
