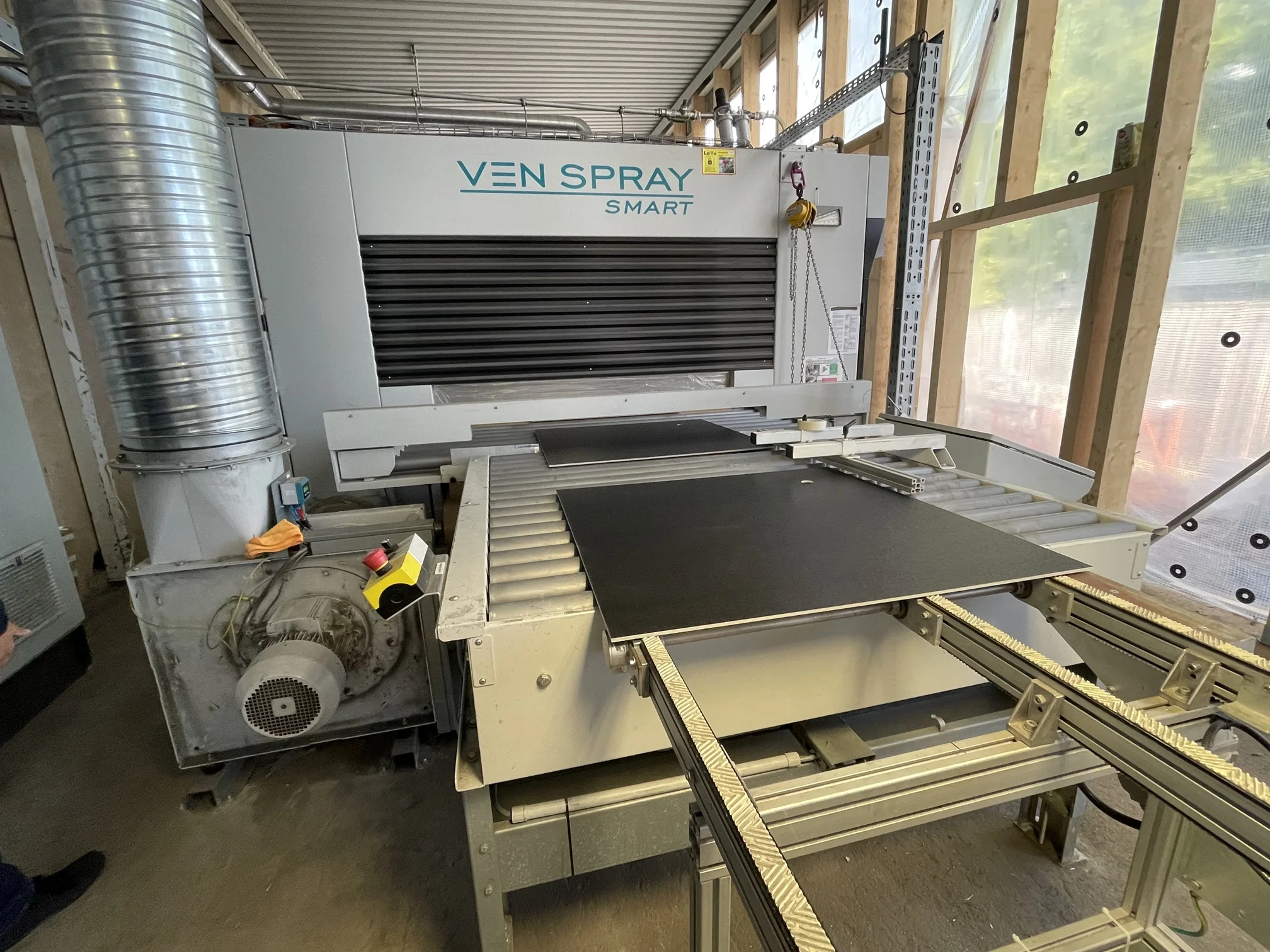

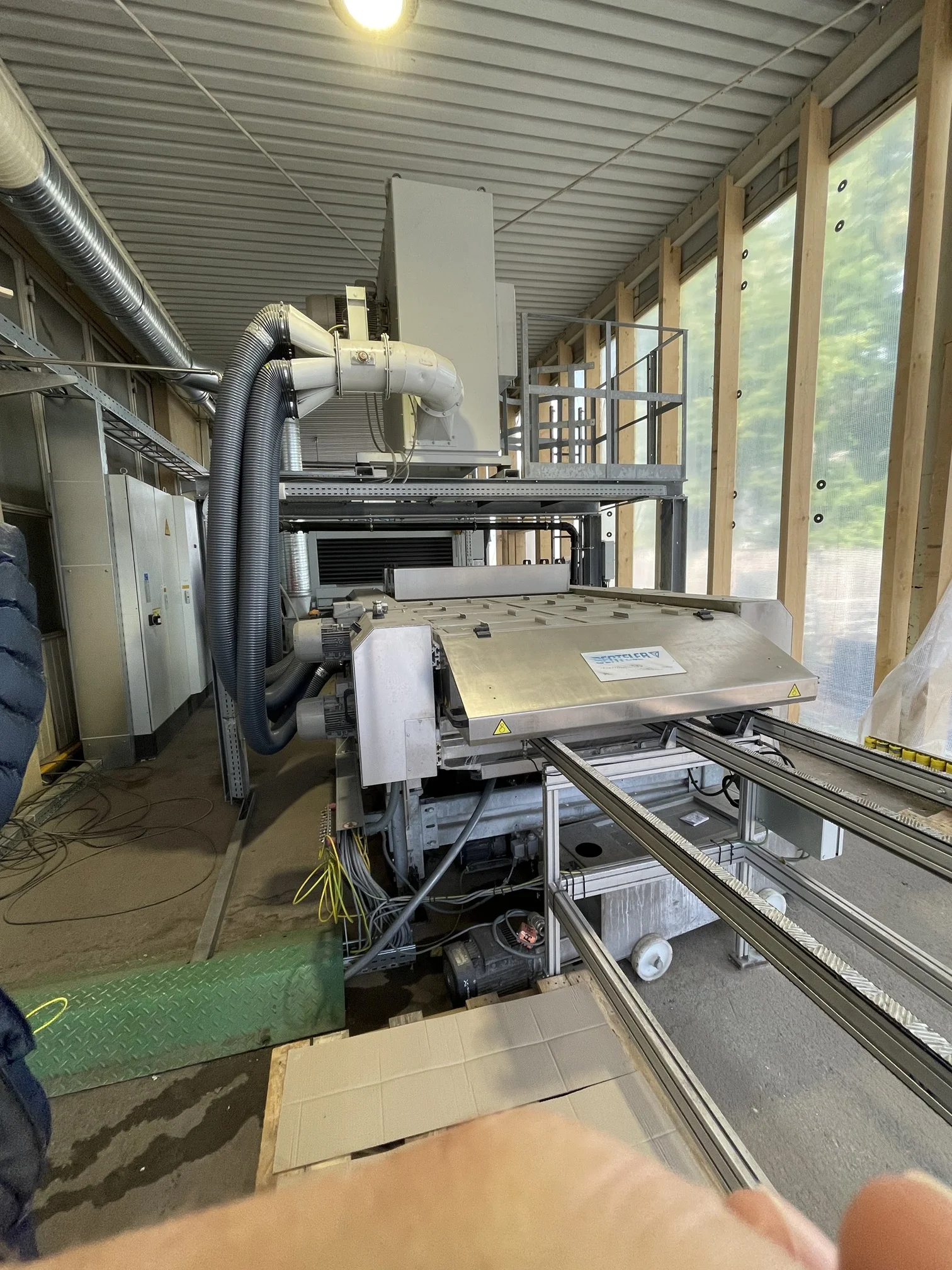

Ven Spray Smart with a Benteler cleaning system
Ven Spray Smart with a Benteler cleaning system
Technical Specifications
- Year of manufacture
- 2017
- Control
- Venjakob
- Workpiece width (min–max) mm
- 150-1300
- Workpiece length (min–max) mm
- 100
- Workpiece height (min–max) mm
- 3–60
- Maximum working width (mm)
- 1300
- Einlauband
- Strap
- Total number of spray heads
- 1
- Pistolenantrieb
- Z-Antrieb
- Pistol Height Adjustment
- Yes
- Zuluftfilterdecke
- Yes
- Spraying stations
- 1
- Feed rate (m/min)
- 3–5
- Dry Vacuuming
- Yes
- Paper Conveyor System
- Yes
- Paint Recovery
- no
- Paint Spray Guns
- 1
- Materialförderpumpen
- 1
- Total number of spray heads
- 1
