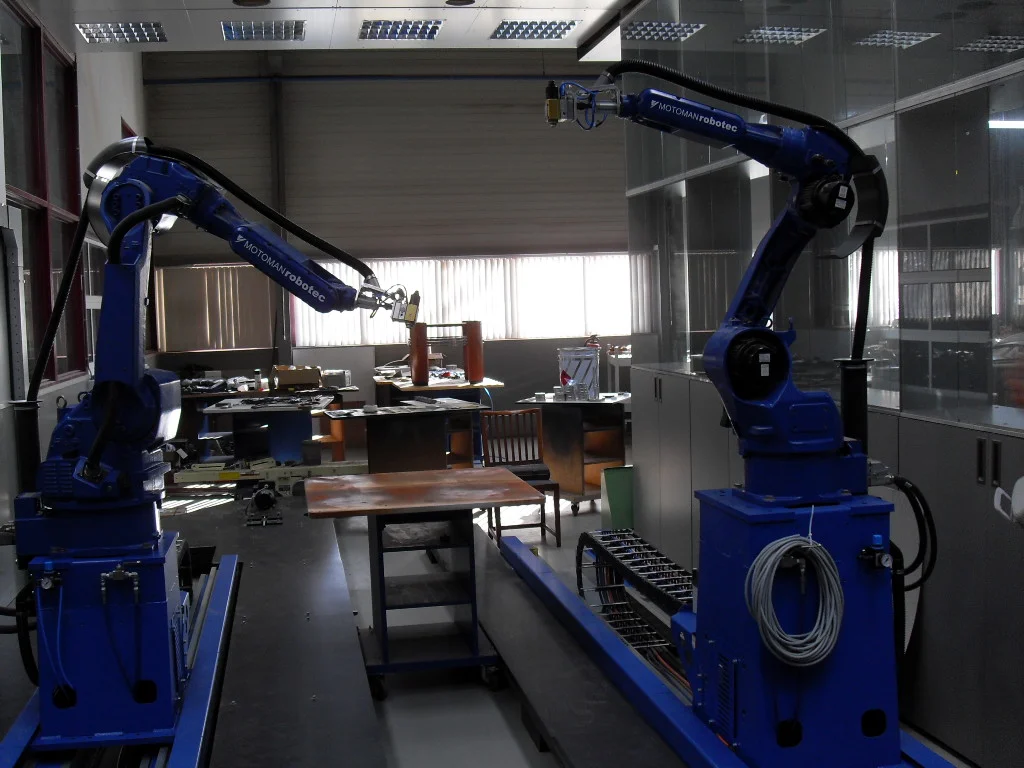

Yaskawa Painting Robots
Yaskawa Painting Robots
Technical Specifications
- Year of manufacture
- 2005–2007

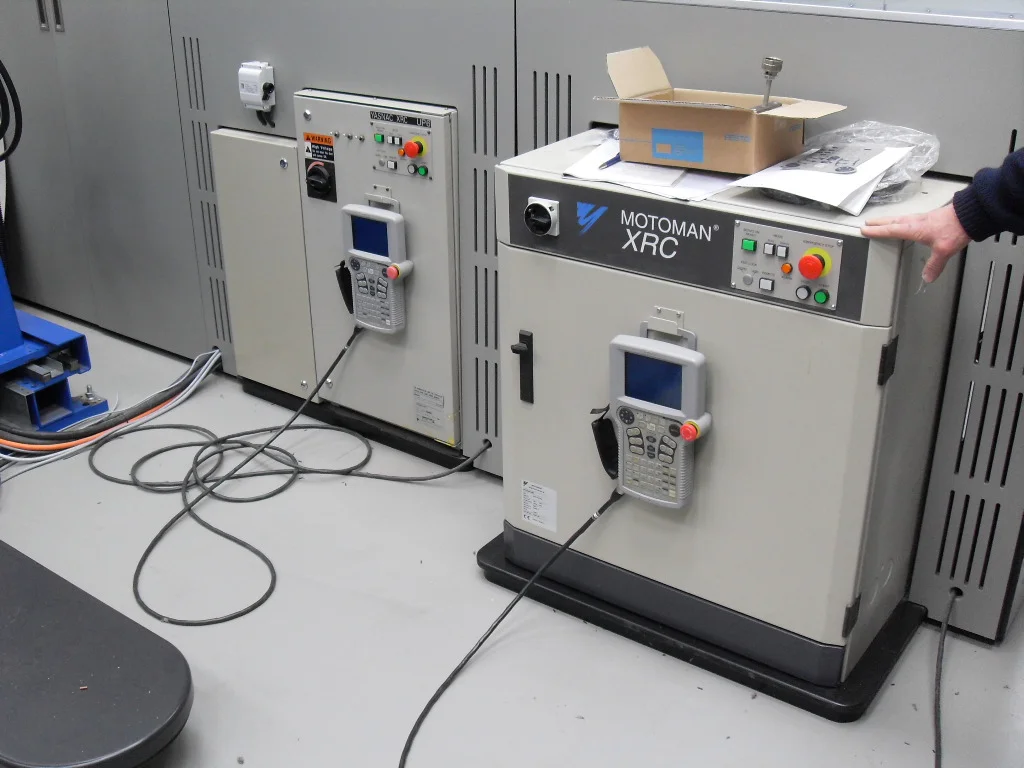

- Control
- Yaskawa
- Total number of spray heads
- 2
- Passage width, mm
- 1500
- Transport System
- Transportwagen gesteuert
- gesteuerte Achsen
- 6
- Ex-geschützt
- Yes
- S-Achse Grad [°]
- +/- 170
- L-Achse Grad [°]
- +/-120-65
- U-Achse Grad [°]
- +/-205-165
- R-Achse Grad [°]
- +/-190
- B-Achse Grad [°]
- +/-145
- T-Achse Grad [°]
- +/-360
- Max.Tragkraft kg
- 5
- Max Drehmoment Nm
- 3/8
- Edelstahlausführung
- Yes
- Spraying stations
- 2
- Farbkreise
- 1
- Paint Circles
- 1
beide Anlagen Roboter sind gekoppelt einem Transportsystem für den Tisch
